Catalog
Attention Standard items can be purchased directly without going through the quotation process. The catalog can be accessed at www.oyospecialtools.com. The item definition process is divided into 3 phasesi:
• Define series
• Define coating and attachment
• Choose article
.
Family and subfamily
The first step in purchasing from the catalog is to choose the family and subfamily of the item you are looking for. To access this view click on the “products” heading in the header in the website, and click the “standard tools” heading.
Series definition parameters
To choose an item, it is necessary to initially define the type of series. By “series” we mean a set of information that groups items with the same characteristics. The information you need to define at this stage changes depending on the family and subfamily you have chosen.
Information needed
Lubrorefrigeration
Type of cooling lubrication
Cutting edge finish
Degree of finish of the cutting edge and grooves (e.g., lapped surfaces) and/or specific feature of the cutting edge itself (e.g., chipbreaker)
Dedicated material
Indication of the particular group, sub-group or alloy for which the tool, belonging to the series under consideration, is designed to machine
Thread type
Thread type according to designation (Metric, UN, etc.).
TTpe of implementation
Peculiarity of series realization (Ex. There are two types of realization for chamfer cutters: 1-head (sharpened on one end only) or 2-head (sharpened on both ends)
Coating and attack form
This is the second step in the process. You will be asked to choose the coating and attachment shape of the tool you are looking for. The types of coating available are:
Code
Description
Structure code
N
Not coated
Not coated
C
Crono Nitride
AlCrN
R
Aluminum Nitride and Silicon
TiAlSi
M
Titanium Nitride and Silicon
TiSiN
A
Aluminum Titanium Nitride
AlTiN
D
Diamond
PKD
X
Titanium Nitride and Aluminum
TiAlN
Attention: The available attachment shapes, for the tools in the catalog are those related to DIN6235 with reference to HA, HB and HE shapes.
Attention: The information you provide is necessary to narrow down the number of items you will be presented with so that you can improve your choice process..
Filter&sort
Once you choose the coating and shape attachment, you will be shown all the items that match your search criteria. Items can be further filtered through the filter on the left of the screen.
Attention: filter criteria that relate to series, i.e., groupings of items, are always required, so it is not possible to remove these criteria from the filter systemo.

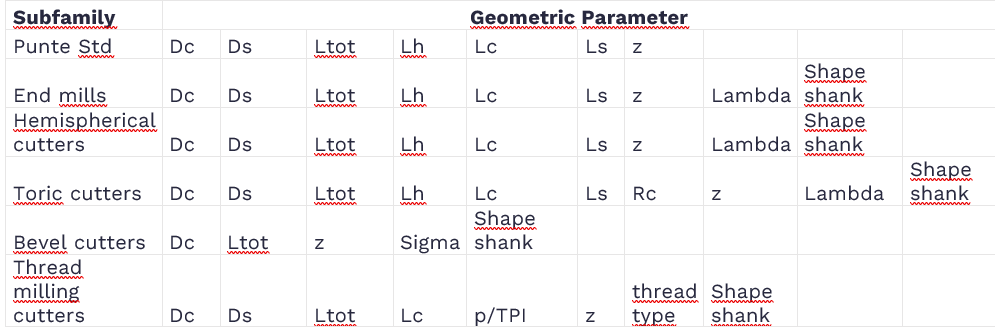

Geometric Parameter
Below are the geometric parameters by subfamily
Favorite Articles
By clicking on the little red flag next to the article, you can add it to your favorites. By clicking on the button at the bottom left, you can access your favorites.
Proceed with RFQ
To add an item to the order click the “add” button. Click on “request quote” to proceed with the quote, follow the RFQ process.
Proceed with purchase
After completing the RFQ process, to complete the order fill out the form with the necessary shipping information, you can choose to proceed with an immediate or deferred payment.
